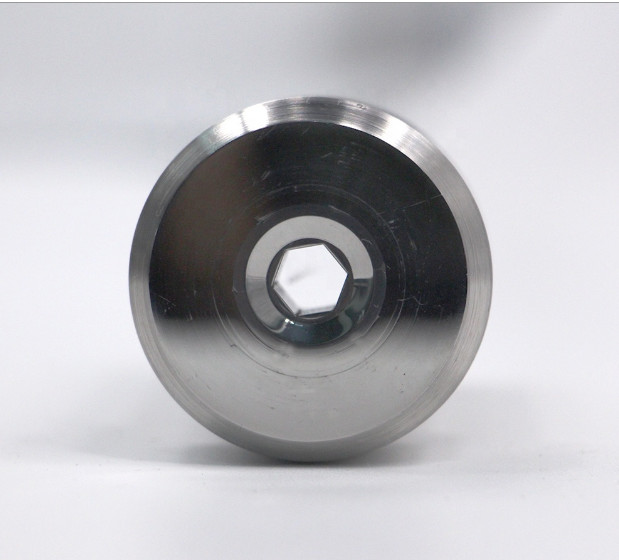

Tungsten Carbide Insert Cold Heading Die Wire Drawing Dies For
Molybenum Wire
Production Description
Carbide molds are an excellent choice for manufacturing ferrous
metal rod size wires. They are also ideal for short-term trial
runs. JWE TC wire drawing die adopts mirror polishing and smooth
wire entry to ensure the best die life and wire drawing. JWE
provides a complete series of TC wire drawing dies, suitable for
rod size wire to medium size wire.
Features:
Ultra wear-resistant: The high hardness of tungsten carbide will
provide a carefree extrusion experience. Its unparalleled wear
resistance will ensure that both the nozzle diameter and flat will
keep the same dimension, and so will your printed parts.
Low pushing force: The high thermal conductivity of both the nozzle
tip and body will pump all the required heat to maintain an even
temperature while extruding. Viscosity highly depends on the
plastic temperature for a constant shear rate. The flow pressure
will be constantly resulting in excellent results and stability.
The ease of pushing the filament will give an extra margin for your
extruder safety.
Faster speed: Due to the high thermal performance of the nozzle in
general, the printing speed can be pushed even further without
sacrificing the quality. The special shape inside the nozzle — made
possible by Dyze Design’s machining and manufacturing techniques —
improves the flow where the diameter tapers, thus allowing a faster
flow rate.
Low friction: The whole nozzle is electroless nickel plated for
enhanced slippery properties. Plastic will slide on the nozzle
instead of sticking to it. This results in cleaner parts and fewer
issues from drag.
Advantage
▪ High hardness
▪ good thermal conductivity
▪ corrosion resistance, impact resistance
▪ low coefficient of friction
Application
▪ tungsten carbide die
▪ Natural diamond wire cutting
▪ Single crystal diamond mold
▪ PCD drawing die
▪ High crystalline diamond wire drawing die
Grades and Properties
| Grade | Density(g/cm3) | Hardness(HRA) | TRS(MPa) |
| YG6X | 14.95 | 91.5 | 1800 |
| YG6 | 14.95 | 90.5 | 1900 |
| YG8 | 14.8 | 89.5 | 2200 |
| YG10 | 14.5 | 88.5 | 2400 |
| YG15 | 14.0 | 87.0 | 2800 |
Performance Chart
Product Packaging
Company Introduction
JWE Carbide Co., Ltd. is designated as a high-tech and new material
enterprise was founded in March of 2005, with a registered capital
of USD1, 000, 000, located in Lukou Economic Zone of Zhuzhou city,
the hometown of Chinese Tungsten Carbide. Our factory covers an area of 20,000 square meters, equipped with
advanced technologies and manufacturing equipment, we major in
researching, developing, and producing medium and high-grade
tungsten carbide products.
FAQ
Q: Are you a trading company or manufacturer?
A: We are a professional factory for 15 years.
Q: Trade Assurance?
A: We have joined the Trade Assurance on Alibaba to protect your
payment to make sure that we deliver on time and manufacture
quality products as required.
Q: How to send an inquiry?
A: It's better to send us detailed specifications of products, it's
better attaching some photos for better understanding, You
can:-Send us an inquiry from the Alibaba.com platform.-Send email
to us directly, salespersons always wait for service at work.
Q: How do you guarantee your quality?
Firstly, we do a quality test during every process. And we use
production instruction cards when one process finished, the work
will be signed on the production instruction cards. Secondly, we
will collect all comments on our products from customers in time.
And try our best to improving quality all the time.
Q: Do you offer samples?
A: Yes, we do offer samples. However, buyers need to pay for the
freight charge. In addition, whether samples are free or not
depends on the quantity you buy.
Q: What kinds of payment do you accept?
A: In addition to the patterns of payment shown above, you can
discuss with us in which way you would like to pay.
