High Hardness 93.8HRA Carbide Rectangular Strips For Cutting Tool

Ask Lasest Price
Brand Name :	JWE
Model Number :	N/A
Certification :	ISO9001-2015
Price :	Negotiable
Payment Terms :	T/T
Supply Ability :	50T per month
Delivery Time :	5-15 days

Add to Cart

Product Details
Company Profile

High Hardness 93.8HRA Carbide Rectangular Strips For Cutting Tool

Tungsten Carbide Strips With Angles For Cutting Tool

1.Product name: Non-standard or customized tungsten carbide products
2.Common material: YG6,YG8,YG10,YG11,YG13,YG15,YG20 etc
3.Main products: Customized molds & dies, rod, plate, strips, cutting tools, TC ring, and roller, mining buttons, carbide tips.
4.Dimension: Customized
5.Certification: ISO9001, ISO14001, SGS

rade	Chemical Composition (%)	Hardness HRA ± 0.3	Density g/cm³ ± 0.1	TRS n/mm³	Grain Size μm	Applications recommended
rade	Co	Hardness HRA ± 0.3	Density g/cm³ ± 0.1	TRS n/mm³	Grain Size μm	Applications recommended
YG3X	3	93.8	15.20	1800	0.8	Semi-finishing and finishing of cast irons,non-ferrous metal & alloys and non metallic materials at medium cutting speed.
YG6	6	91.5	14.92	2200	1.2~2.0
YG6X	6	92.5	14.90	2400	0.8	Machining of chilled alloy cast irons and refractory alloy steel of finishing of ordinary cast irons.
YG6.2A	5.5	93.5	14.60	3200	0.6
ZF10A	6	93.2	14.85	3500	0.7	Suitable for fine finishing and semi finishing for various cast irons and non-ferrous metal ,also suitable for whole cutting tool making.
YG8	8	90.5	14.70	2500	1.2~2.0	Roughing of cast iron ,non-ferrous metals & alloys as well as non metallic materials at low cutting speed.
YG8H	8.5	91.0	14.50	2000	1.2~2.4
YW2	8	92.0	13.20	2800	0.8	Roughing and medium machining of ordinary steel ,high manganese steel,stainless steel and advanced alloy steel.

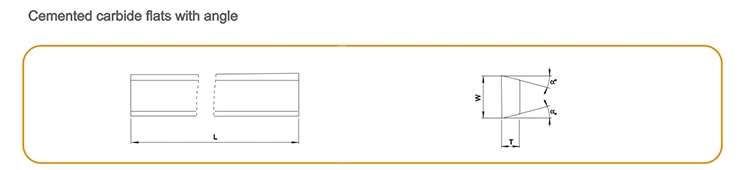

K20 K30 YG8 virgin material high quality tungsten carbide strips

Basic dimension (mm)

(mm)

Tolerance

of T (mm)

(mm)

Tolerance

of W (mm)

(mm)

Tolerance

of L (mm)

α° ± 1.0°

2.5—20

+0.2/+0.5

2.5—20

+0.2/+0.5

≤1800

+0/+3.0

8—12

K20 K30 YG8 virgin material high quality tungsten carbide strips

Basic dimension (mm)

(mm)

Tolerance

of T (mm)

W(mm)

Tolerance

of W (mm)

L(mm)

Tolerance

of L (mm)

α° ± 1.0°

2.0—22

+0.2/+0.5

2.0—22

+0.2/+0.5

≤1800

+0/+3.0

8—12

Production and test of Tungsten carbide strip:
1)Carbide Balls will start to prepare the powder as per the customer’s requirement with our wet-grinding machine

2) Before mass production, we need to do a trial pressing and sintering, and we check the appearances and the sizes of the samples with a micrometer to ensure that the requirements of the drawings can be met before batch production

3) Bulk production, press the raw materials to shape blanks, and carbide tips must be passed by semi-finished inspection.

4) sinter blanks to finish (HIP) and finished products inspection to ensure the best quality and production capacity.
